Services
Precision Injection Moulding contract mfr
Our facility is equipped with sophisticated Japanese injection moulding machines, ensuring high precision, consistency, and efficiency in production. We are committed to delivering superior quality products while maintaining strict adherence to timelines and industry standards.
MACHINE SPECIFICATIONS
A clear, engineering-led workflow to reduce risk, improve mouldability, and deliver predictable lead times using below machines
| NAME OF THE M/C | MITSUBUSHI MM2000T | UBE 850T | JSW 450 EII |
| PLATEN SIZE mm | 2650*2450 | 1560*1560 | 1150*1150 |
| TIE BAR mm | 1800*1600 | 1060*1060 | 810*810 |
| MOULD HEIGHT mm | 800-1500 | 500-1100 | 380-750 |
| OPENING STROKE mm | 2400 | 1200 | 800 |
| MAX DAYLIGHT mm | 3200 | 2300 | 1550 |
MACHINES AVAILABILITY
We currently have below injection moulding machines and can furthur add as per requirement

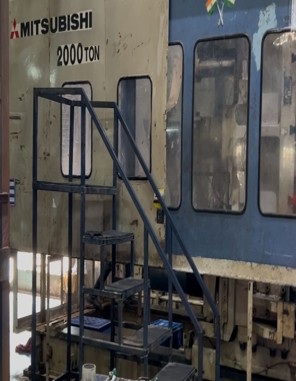

MITSUBUSHI MM2000T

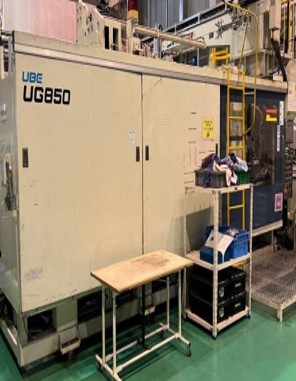

UBE 850T

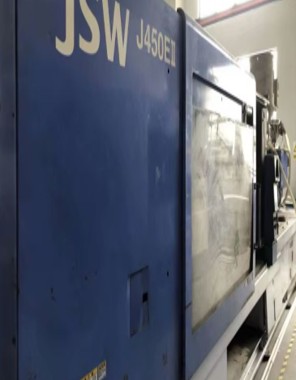

JSW 450 EII
